2-Piece Flanged Ball Valve is a type of valve that is frequently preferred for fluid control in industrial applications, especially suitable for use in large diameter pipelines and high pressure applications with its high strength and sealing properties.
In 2-piece flanged ball valves, the term ‘2-piece’ indicates that the body of the valve consists of 2 parts. The fact that the valve body consists of 2 parts provides advantages for the maintenance and replacement of internal parts and gaskets, and allows the use of a large-sized ball suitable for use for higher flow rates.
Operating temperature between -30 °C and +120 °C. Suitable for pressure class PN16.
Get a Quote Whatsapp
| SPECIFICATIONS | |
|---|---|
| Body | AISI304 / AISI316 |
| Ball | AISI304 / AISI316 |
| Gasket | PTFE |
| Ball Shaft | AISI304 / AISI316 |
| Shaft Gasket | PTFE |
| Shaft Nut | AISI304 |
| Shaft Fitting | AISI304 |
| Handle | AISI304 |
| Lock Mechanism | AISI304 |
| Dimensions | DIN 3202-F1/F5 (DIN 558-1) |
| Connections | DIN 2501 (DIN EN 1092-2) |
| Tests | EN 12266-1 |
| Operating Temperature | -30 °C / +120 °C |
| Pressure Class | PN16 |

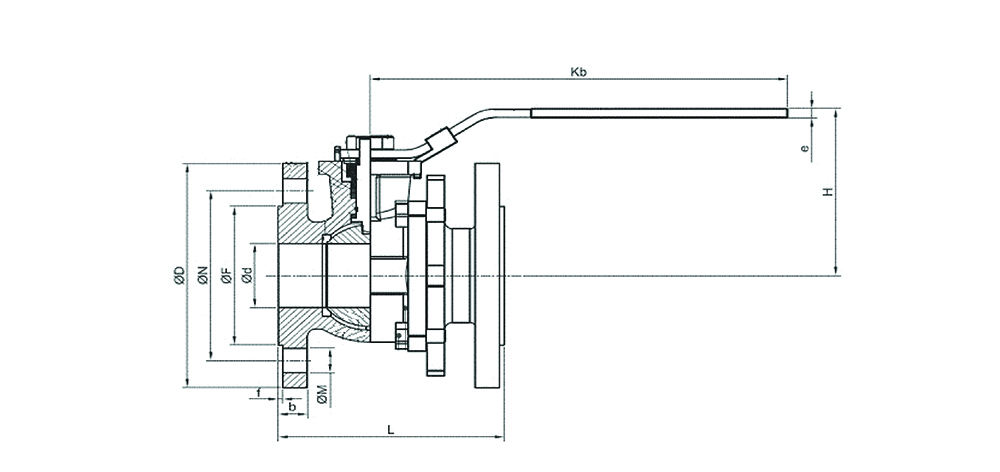

| Technical Drawing | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
|||||||||||
| DIMENSIONS | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CLASS | SIZE | L | Kb | H | Ød | ØD | ØN | ØF | b | ØD1 | ØM | f | |
| PN16 | |||||||||||||
| DN25 | 125 | 175 | 115 | 25 | 115 | 85 | 68 | 18 | 4 | 14 | 2 | ||
| DN32 | 130 | 180 | 120 | 32 | 140 | 100 | 78 | 18 | 4 | 18 | 2 | ||
| DN40 | 140 | 265 | 138 | 40 | 150 | 110 | 84 | 18 | 4 | 19 | 3 | ||
| DN50 | 150 | 265 | 145 | 50 | 165 | 125 | 99 | 20 | 4 | 19 | 3 | ||
| DN65 | 170 | 265 | 155 | 65 | 185 | 145 | 118 | 20 | 4 | 19 | 3 | ||
| DN80 | 180 | 295 | 162 | 80 | 200 | 160 | 132 | 22 | 8 | 19 | 3 | ||
| DN100 | 190 | 265 | 175 | 100 | 220 | 180 | 156 | 24 | 8 | 19 | 3 | ||
| DN125 | 325 | 430 | 200 | 125 | 250 | 210 | 184 | 26 | 8 | 19 | 3 | ||
| DN150 | 350 | 430 | 215 | 150 | 285 | 240 | 211 | 26 | 8 | 23 | 3 | ||
| DN200 | 400 | 450 | 230 | 200 | 340 | 295 | 266 | 30 | 12 | 23 | 3 | ||
| DN250 | 533 | 355 | 287 | 26 | 405 | 310 | 319 | 26 | 12 | 23 | 3 | ||
