3-Piece Threaded Ball Valve is a type of valve that is frequently preferred for fluid control in industrial applications, especially suitable for use in large diameter pipelines and high pressure applications with its high strength and sealing properties.
In 3-piece threaded ball valves, the term ‘3-piece’ indicates that the body of the valve consists of 3 parts. The fact that the valve body consists of 3 parts provides an advantage for the maintenance and replacement of internal parts and seals. Since the internal parts are easily replaceable, worn or deteriorated parts can be easily replaced, extending the life of the valve without loss of performance.
Operating temperature between -30 °C and +120 °C. Suitable for PN63 pressure classes.
Get a Quote Whatsapp
| SPECIFICATIONS | |
|---|---|
| Body | AISI304 / AISI316 |
| Ball | AISI304 / AISI316 |
| Gasket | PTFE |
| Ball Shaft | AISI304 / AISI316 |
| Shaft Nut | AISI304 |
| Shaft Fitting | AISI304 |
| Handle | AISI304 |
| Locking Mechanism | AISI304 |
| Operating Temperature | -30 °C / +120 °C |
| Pressure Class | PN63 |

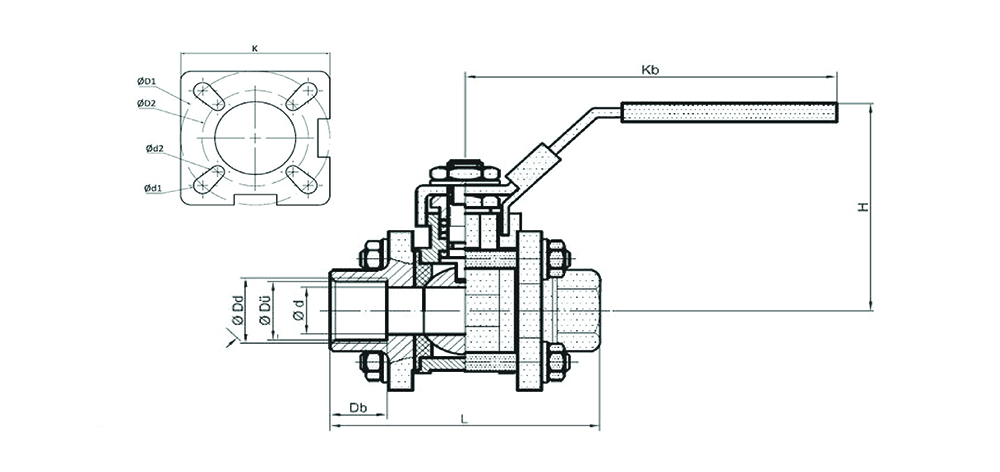

| Technical Drawing | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
|||||||||||
| DIMENSIONS | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CLASS | SIZE | L | Kb | H | Ød | Ødü | ØDd | ØDb | |||||
| PN40 | DN15 | 1/2" | 75 | 120 | 65 | 15 | 18,6 | 21 | 15 | ||||
| PN40 | DN20 | 3/4" | 80 | 140 | 70 | 20 | 24,2 | 26,4 | 16 | ||||
| PN40 | DN25 | 1" | 90 | 145 | 80 | 25 | 30,2 | 33,2 | 19 | ||||
| PN40 | DN32 | 1.1/4" | 110 | 160 | 85 | 32 | 39 | 41,9 | 21 | ||||
| PN40 | DN40 | 1.1/2" | 120 | 160 | 100 | 40 | 44,9 | 47,8 | 21 | ||||
| PN40 | DN50 | 2" | 140 | 205 | 105 | 50 | 56,7 | 59,6 | 25 | ||||
| PN16 | DN65 | 2.1/2" | 185 | 300 | 145 | 65 | 72,2 | 75,2 | 30 | ||||
| PN16 | DN80 | 3" | 205 | 410 | 180 | 80 | 84,9 | 87,9 | 33 | ||||
| PN16 | DN100 | 4" | 240 | 410 | 195 | 100 | 110 | 113 | 35 | ||||
