Metal Bellows Axial Expansion Joint is a flexible connection element that extends its life and provides a safe working environment by protecting the system against effects such as thermal expansion and vibration occurring in pipelines.
Get a Quote Whatsapp
| SPECIFICATIONS | |
|---|---|
| Axial Operating Tolerance | -20 /+10 (30mm) -30 /+15 (45mm) -40 /+20 (60mm) |
| Flange | AISI304 / 321 |
| Bellows | AISI304 |
| Operating Temperature | 427 °C |
| Operating Pressure | 16 bar / 2.5 bar |

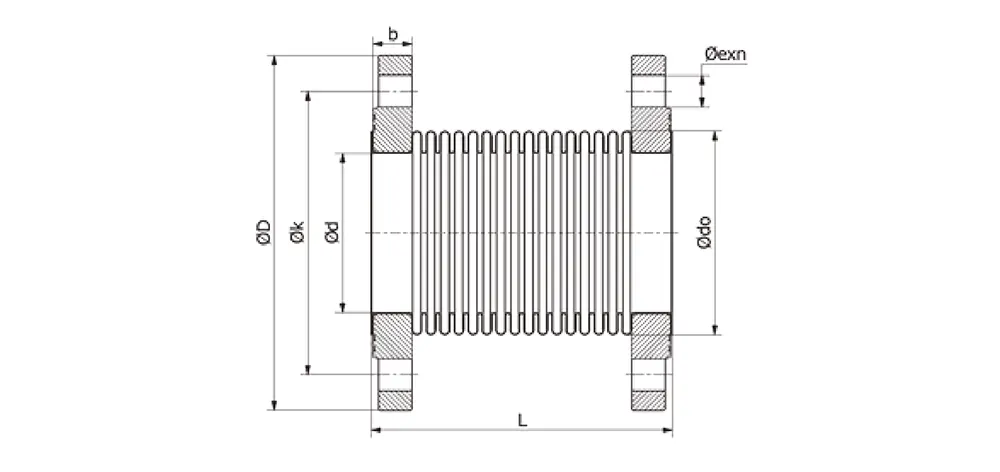

| Technical Drawing | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
|||||||||||
| DIMENSIONS | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SIZE | L-Height | Connection Dimensions | |||||||||||
| Expansion 30 mm | Expansion 45 mm | Expansion 60 mm | Ød | ØD | Øk | n | Øexn | b | |||||
| DN25 | 110 | 43 | 115 | 85 | 4 | 14 | 18 | ||||||
| DN32 | 110 | 43 | 140 | 100 | 4 | 18 | 18 | ||||||
| DN40 | 120 | 150 | 49 | 150 | 110 | 4 | 18 | 18 | |||||
| DN50 | 120 | 150 | 180 | 61 | 165 | 125 | 4 | 18 | 18 | ||||
| DN65 | 120 | 150 | 180 | 77 | 185 | 145 | 4 | 18 | 18 | ||||
| DN80 | 120 | 150 | 180 | 89 | 200 | 160 | 8 | 18 | 20 | ||||
| DN100 | 120 | 155 | 185 | 115 | 220 | 180 | 8 | 18 | 20 | ||||
| DN125 | 125 | 155 | 190 | 140 | 250 | 210 | 8 | 18 | 22 | ||||
| DN150 | 130 | 155 | 200 | 169 | 285 | 240 | 8 | 22 | 22 | ||||
| DN200 | 150 | 230 | 230 | 220 | 340 | 295 | 12 | 22 | 24 | ||||
