Mini ball valves are a smaller version of standard ball valves but with basic features. Generally used in smaller pipelines and systems requiring less flow, these valves are suitable for use in applications requiring precise flow control. With their small size, they can be easily used in limited areas where standard valves cannot fit and save space.
Operating temperature between -30 °C and +120 °C. Suitable for PN63 pressure class.
| SPECIFICATIONS | |
|---|---|
| O-Ring (1) | NBR |
| Shaft (2) | AISI304 / AISI316 |
| Bolt (3) | AISI304 / AISI316 |
| Handle (4) | Aluminum |
| Body (5) | AISI304 / AISI316 |
| Cover (6) | AISI304 / AISI316 |
| Seat (7) | PTFE |
| Ball (8) | AISI304 / AISI316 |
| Operating Temperature | -30 °C / +120 °C |
| Pressure Class | PN63 |

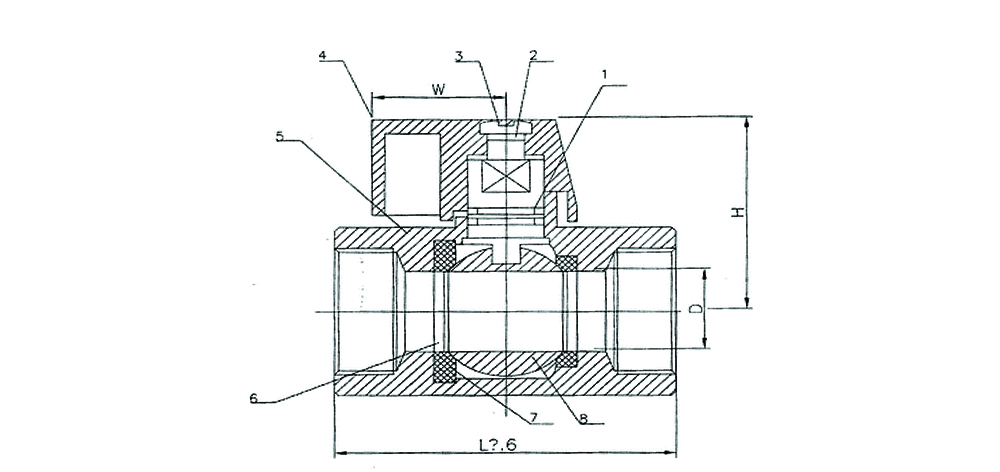

| Technical Drawing | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
|||||||||||
| DIMENSIONS | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SIZE | L | D | H | W | E | ||||||||
| 1/8" | 45 | 7 | 26 | 23 | 18 | ||||||||
| 1/4" | 45 | 7 | 26,5 | 22,8 | 18 | ||||||||
| 3/8" | 45 | 7 | 26,5 | 22,8 | 18 | ||||||||
| 1/2" | 49 | 9 | 28,3 | 22,8 | 22 | ||||||||
| 3/4" | 52 | 12,5 | 31,5 | 22,8 | 28 | ||||||||
| 1" | 65 | 15 | 34 | 22,8 | 34 | ||||||||
